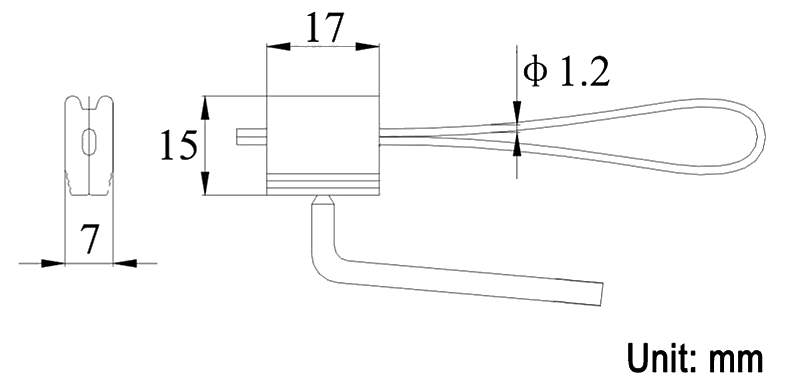

Specifications and Features
● Aluminum alloy cover
● φ1.2 galvanized steel cable
● The external locking mechanism of this seal consists of a shear bolt that breaks away when the cable is tightly secured in the body
● Permanent laser marking for the highest printing security
● Standard exposed cable length of 25cm, meantime with adjustable cable length
● Tensile strength: about 180 kgf

Customized Options
● Customer name, logo, unique sequential numbered, bar coded and QR code(Laser marking)
● Customized cable length available upon request
● Standard colors of red, blue, gold, green, silver white, and black as below photo


Applications
● Security→Doors of trailers and trucks, Cars, Vans, Tankers, Storage cabinets, Pipelines,High value or dangerous cargo
● Industries→Transportation, Power companies, Chemicals, Military, Banking, Customs,Healthcare, Food and beverage

Instructions for Use
● Loop the cable through the item to be sealed.
● Loosen the shear bolt by rotate counterclockwise.
● Insert both cable ends and pull the cable through the locking chamber.

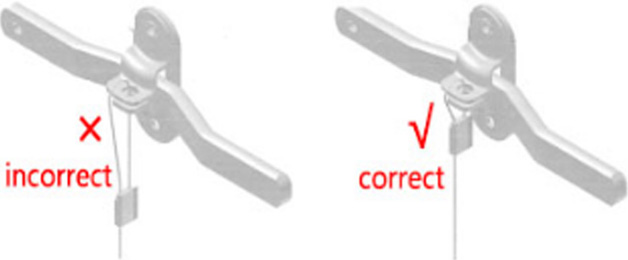

● Pull the cable all the way through the body until the item is tightly sealed as below“correct way”.

● Rotate the shear bolt clockwise till it breaks away.

Removal
● By cable cutters
