Features

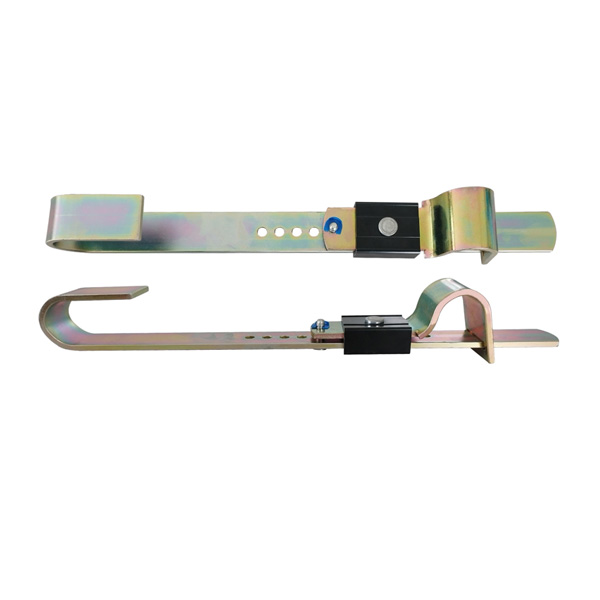

● Single-use heavy duty barrier seal without any key

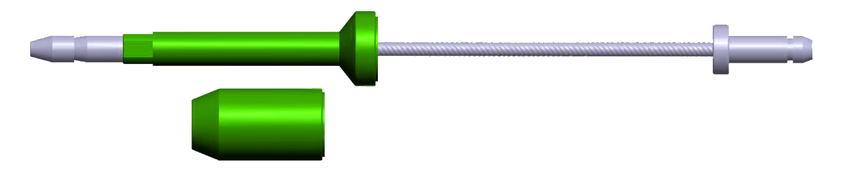

● Consisted of two lock bodies, the lock cap and the lock pin connected with a bolt seal

● Materials: Steel plate→ Hardened carbon

                  Lock cap →Galvanized aluminum cover & Galvanized steel nut

                  Lock pin → Galvanized carbon steel

                  Bolt seal parts →Galvanized steel cable,ABS plastic, galvanized carbon steel

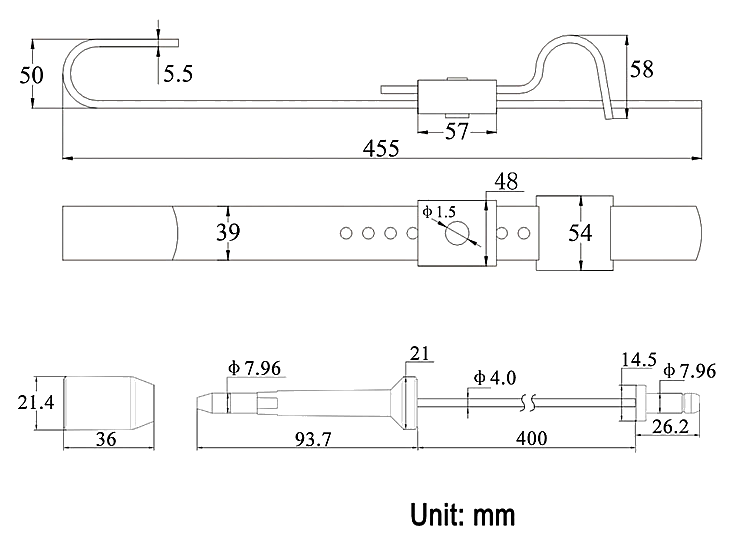

● Many optional lock holes available for different space between door tubes

● Permanent laser marking for the highest printing security

● Strength of barrier seal: more than 35KN

Customized Options

● Customer name, logo, sequential numbers, barcode and QR code (Laser Marking)

Applications

● Security→ Al l kinds of ISO containers, Trailers, Van trucks and Tank trucks

● Industries → High duty and high value cargo transportation

Instructions for Use:

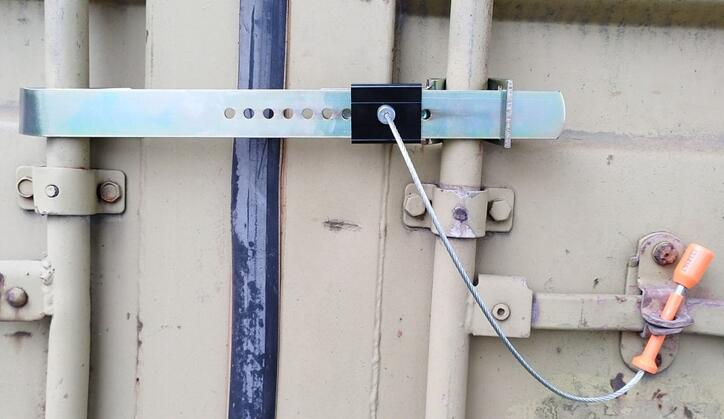

● Fix two barriers on the container/ trailer/ truck door tubes.

● Knock the lock pin into the lock cap until it clicks and then lock the bolt seals on container.

● Verify that the security seal are sealed.

● Record the seal number to control security.

Removal
● By bolt cutters or electric cutting tools (Eye protection is needed)
