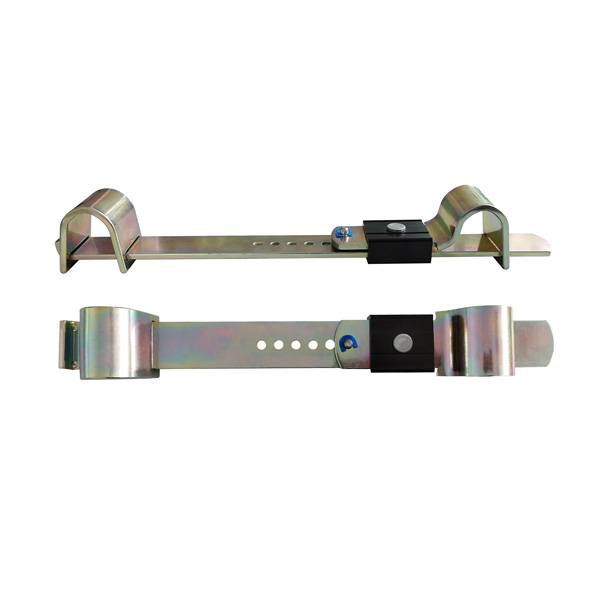

High Security Barrier Seal SY-F002
High Security Barrier Seal SY-F002
High Security Barrier Seal SY-F002

High Security Barrier Seal SY-F002

Model specification

Features
● Single-use heavy duty barrier seal without any key
● Consisted of three lock bodies, the lock cap and the lock pin
● 100% high-strength hardened carbon steel construction lock body
● Many optional lock holes available for different space between door tubes
● Permanent laser marking for the highest printing security

Customized Options
● Customer name, logo, sequential numbers, barcode and QR code (Laser Marking)

Applications
● Security_>All kinds of lSO containers, Trailers, Van trucks and Tank trucks
● Industries ->High duty and high value cargo transportation

Instructions for Use
● Fix two barriers on the container/trailer/truck door tubes.
● Knock the lock pin into the lock cap until it clicks.
● Verify that the security seal are sealed.
● Record the seal number to control security.

Removal
● By bolt cutters or electric cutting tools (Eye protection is needed)


Material
Lock body→ Hardened carbon steel
Lock cap → Galvanized aluminum cover & Galvanized steel nut
Lock pin → Galvanized carbon steel

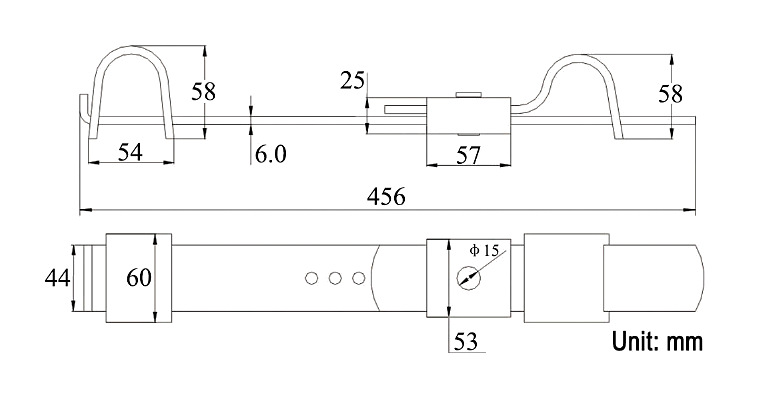

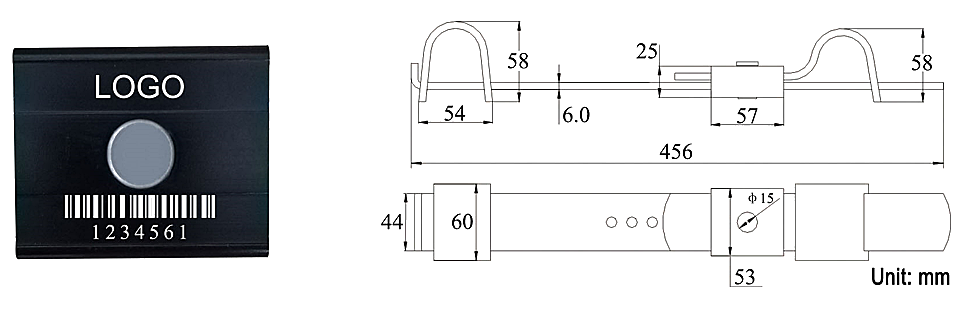

Size Check the above drawing
Standard Colors Lock body→ Original Lock cap → Black
Printing Laser marking
Customization Printing →Customer name, logo, sequential numbers, barcode and QR code
Break Strength ≥ 40KN (High Security Seal, ISO)
